AC series
AC800-1P
- Series
- AC
- Phase
- 1P / single phase
- Voltage
- 220V
- Lifting force
- 800 kg.f
- Maximum raising height
- 9 m
- Chain number
- 10A
- Roller diameter
- 6 in
Rolling-door motors / Configuration review

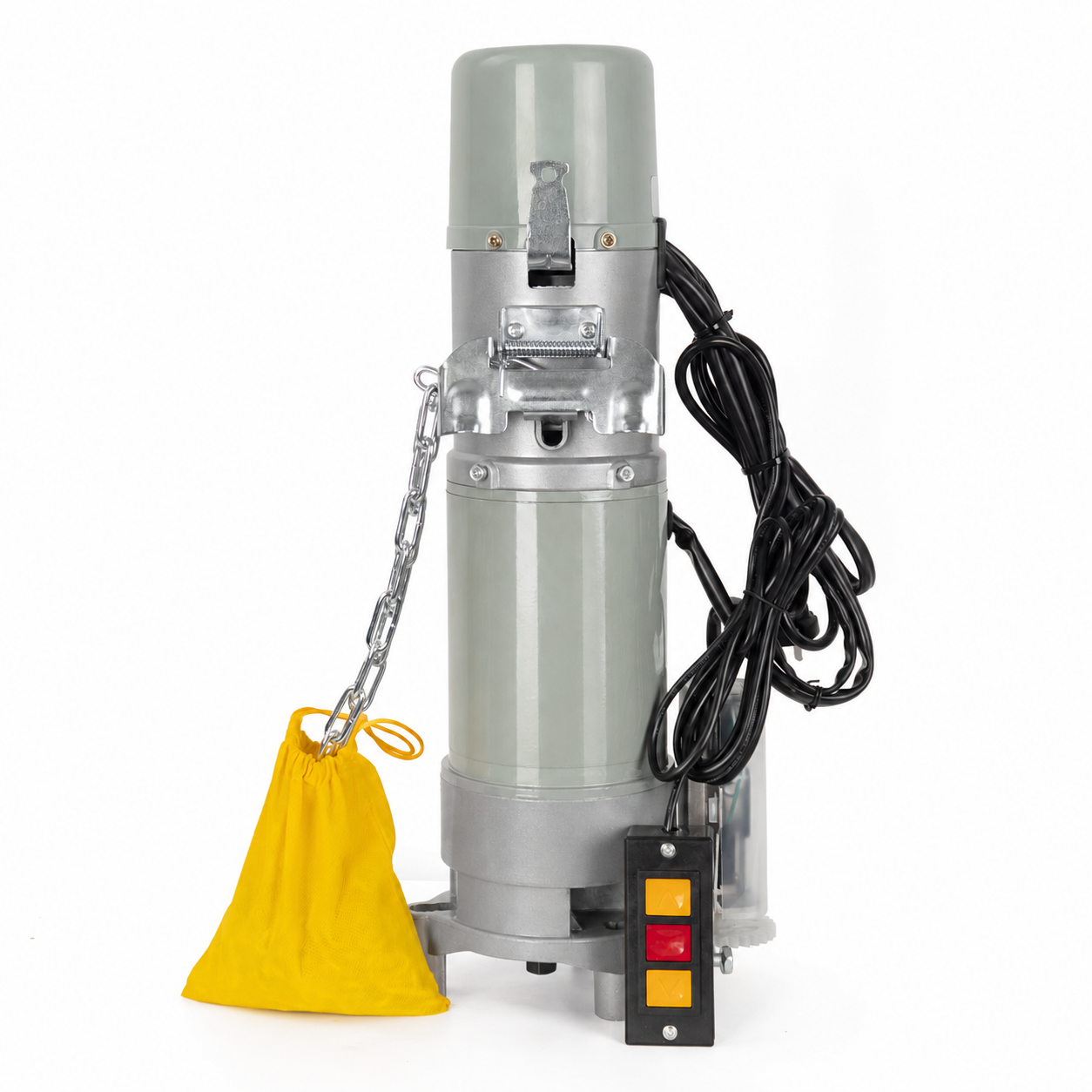

AC800-1P / DC-800Start with the door.
Confirm the motor.
Two model references. Clear electrical and mechanical fields. A project brief before a configuration recommendation.
The 800 kg.f figure is lifting force. It is not a door-mass rating.
Model-specific information
The same force figure.
Different configuration details.
DC series
DC-800
- Series
- DC
- Phase
- Confirm per enquiry
- Voltage
- Confirm per enquiry
- Lifting force
- 800 kg.f
- Maximum raising height
- 9 m
- Chain number
- 10A
- Roller diameter
- 5 in
800 kg.f must not be read as an approved 800 kg door mass. Model selection requires the actual door mechanism, dimensions, door mass, power supply and operating requirements.
AC frequency can be manufactured for 50 Hz or 60 Hz to destination requirements; confirm the ordered configuration. Speed-to-frequency mapping is not specified here. DC working voltage and power/battery configuration require confirmation.
Technical information
Ask for the right
documents.
Request by exact model
Specify AC800-1P or DC-800 when requesting a parameter sheet, dimensional drawing, wiring information or installation guidance. Availability and the applicable version must be confirmed for your configuration.
Tell us the controller and remote requirements; compatibility is confirmed per enquiry.
Add your document request to the brief ↗Request the applicable model-specific documents for your configuration. No certification, IP rating, duty cycle or universal compatibility is claimed.
Selection starts here
Bring the door
into the discussion.
Door and mechanism
Share the door type, dimensions, curtain material and actual door mass.
Power and destination
Share the destination, required voltage and frequency. For DC-800, confirm the supply arrangement.
Use and environment
Describe daily cycles, busiest operating period and installation conditions.
Order requirements
Include the model, estimated quantity, destination port and controller requirements.
Start with your project
Prepare a model-specific enquiry.
Share your door type, dimensions, power supply and destination. We will confirm the configuration for your project.
Prefer the website form? Send your requirements through our existing enquiry form. Include your model reference.
